Cables & Connectors
There are a few quirks to this laptop as IBM has used some standard connectors in non-standard ways. The most notable is the PCMCIA interface for the HDD. The hard drive caddy can be 3D printed if it breaks, but the custom ribbon connector that takes a 44pin IDE interface to the proprietary PCMCIA connector is not something you’ll be able to find.

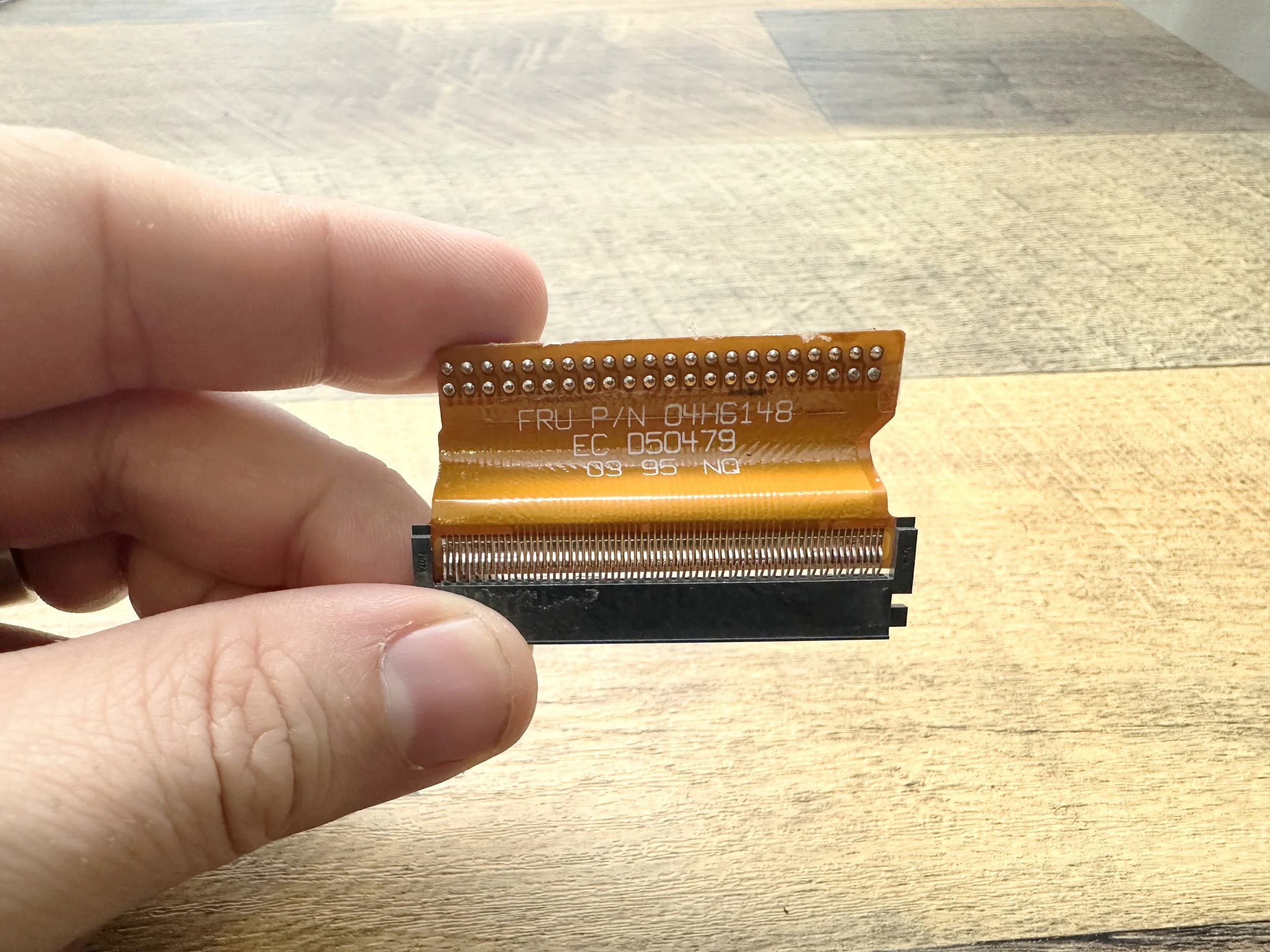

The IBM FRU & Part Number is: 04H6148
In case anyone would like to make a replacement or adapter, I’ve written out the pinout for the adapter below…
A few things to note
The adapter seems to use the middle of the PCMCIA pins while doubling up on 5V+ and Ground pins in some areas, but it’s not all entirely logical so please follow the diagram carefully and check it for accuracy before connecting any hard drives!
| Description | IDE Connector Pin | PCMCIA Connector Pin |
|---|---|---|
| RESET- | 1 | 56 |
| Ground | 2 | 57, 55 |
| DD7 | 3 | 54 |
| DD8 | 4 | 53 |
| DD6 | 5 | 52 |
| DD9 | 6 | 51 |
| DD5 | 7 | 50 |
| DD10 | 8 | 49 |
| DD4 | 9 | 48 |
| DD11 | 10 | 47 |
| DD3 | 11 | 46 |
| DD12 | 12 | 45 |
| DD2 | 13 | 44 |
| DD13 | 14 | 43 |
| DD1 | 15 | 42 |
| DD14 | 16 | 41 |
| DD0 | 17 | 40 |
| DD15 | 18 | 39 |
| Ground | 19 | 38 |
| KEY | 20 | NOT USED |
| DMARQ | 21 | 36 |
| Ground | 22 | 35 |
| DIOW | 23 | 34 |
| Ground | 24 | 33 |
| DIOR | 25 | 32 |
| Ground | 26 | 31 |
| IORDY | 27 | 30 |
| PSYNC:CSEL | 28 | 29 |
| DMACK- | 29 | 28 |
| Ground | 30 | 27 |
| INTRQ | 31 | 26 |
| IOCS16- | 32 | 25 |
| DA1 | 33 | 24 |
| PDIAG- | 34 | 23 |
| DA0 | 35 | 22 |
| DA2 | 36 | 21 |
| CS0- | 37 | 20 |
| CS1- | 38 | 19 |
| DASP- | 39 | 18 |
| Ground | 40 | 17 |
| +5V (Logic) | 41 | 15, 16 |
| +5V (Motor) | 42 | 13, 14 |
| Ground | 43 | 12 |
| Type- (0-ATA) | 44 | NOT USED |
